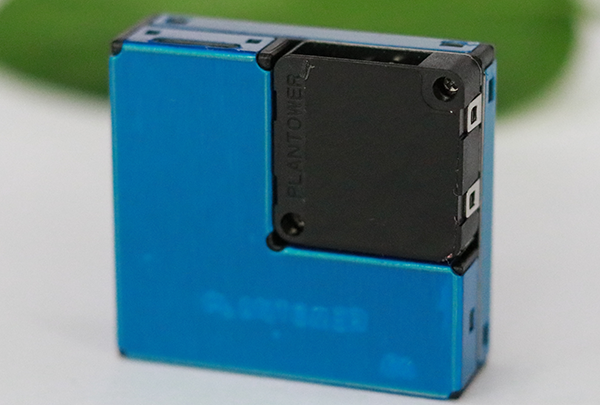

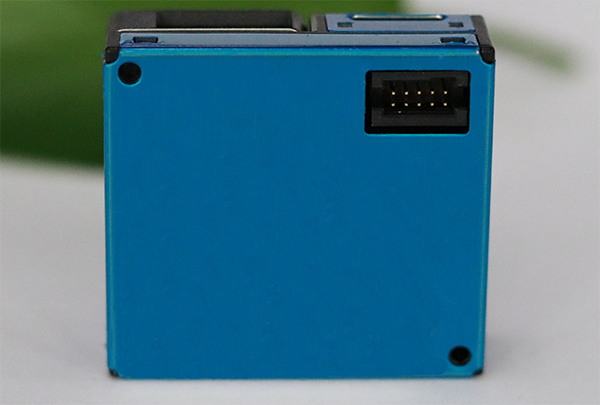

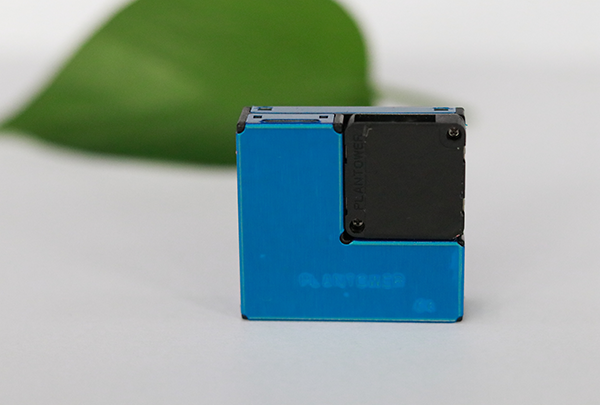

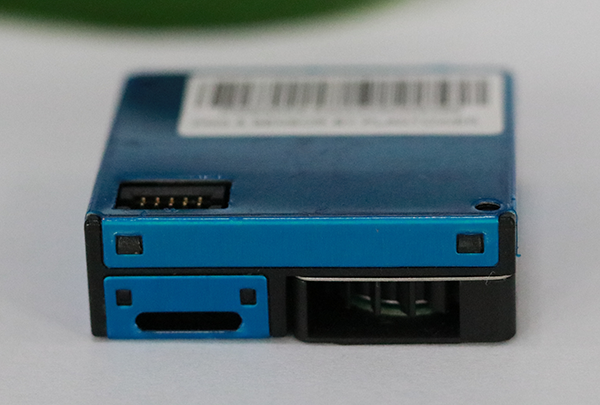

  • PMSA003
  • PMSA003
  • PMSA003
  • PMSA003
Main characteristics
 Zero false alarm rate
 Real-time response
 Correct data
 Minimum distinguishable particle diameter :0.3 micrometer
 High anti-interference performance because of the patent structure of six sides shielding
 Optional direction of air inlet and outlet in order to adapt the different design
  • Parameter IndexUnit
    Particle Range of measurement
    0.3~1.0;   1.0~2.5; 2.5~10  Micrometerμm
    Particle   Counting Efficiency50%@0.3µm   98%@0.5µm
    Particle Effective Range
        PM2.5 standard
    Particle Maximum Range
        PM2.5 standard*
    1000 μg/m³
    Particle   Resolution1μg/m³
    Particle Maximum Consistency Error (PM2.5
        standard data)

    Particle   Standard Volume0.1LitreL
    Single   Response Time<1 Seconds
    Total   Response Time<10 Seconds
    DC   Power Supply Typ5.0 Min:4.5 Max:5.5 VoltV
    Active   Current100 MilliamperemA
    Standby   Current200 MilliamperemA
    Interface   Level L<0.8 @3.3 H>2.7@3.3 VoltV
    Working   Temperature Range-10~+60
    Working   Humidity Range 0~99
    Storage   Temperature Range-40~+80
    Physical   Size38mm×35mm×12mmmm
